Flap Turnstile Mechanism (BW-TFM550)

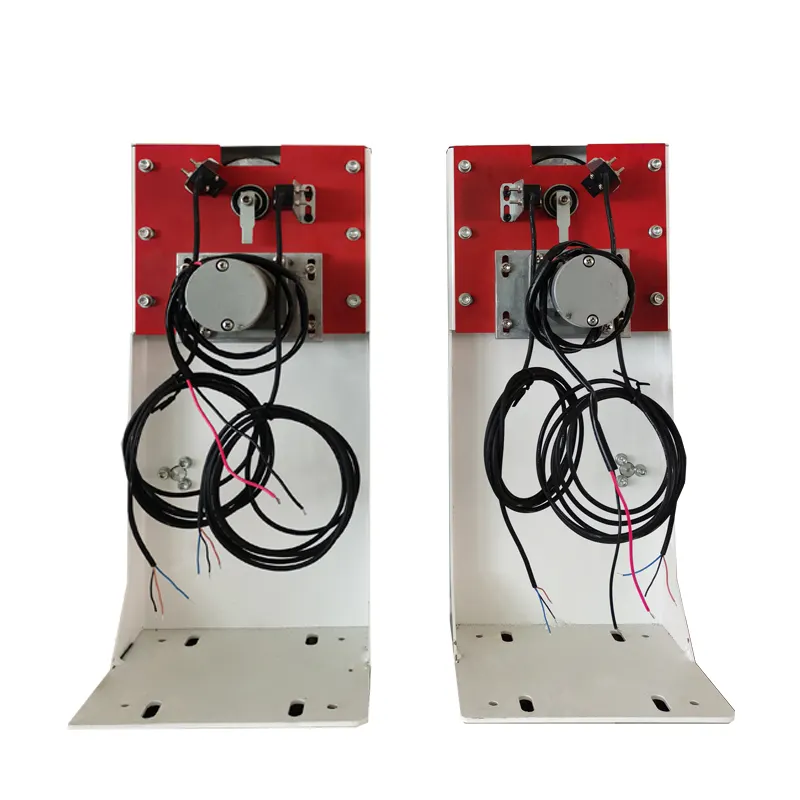

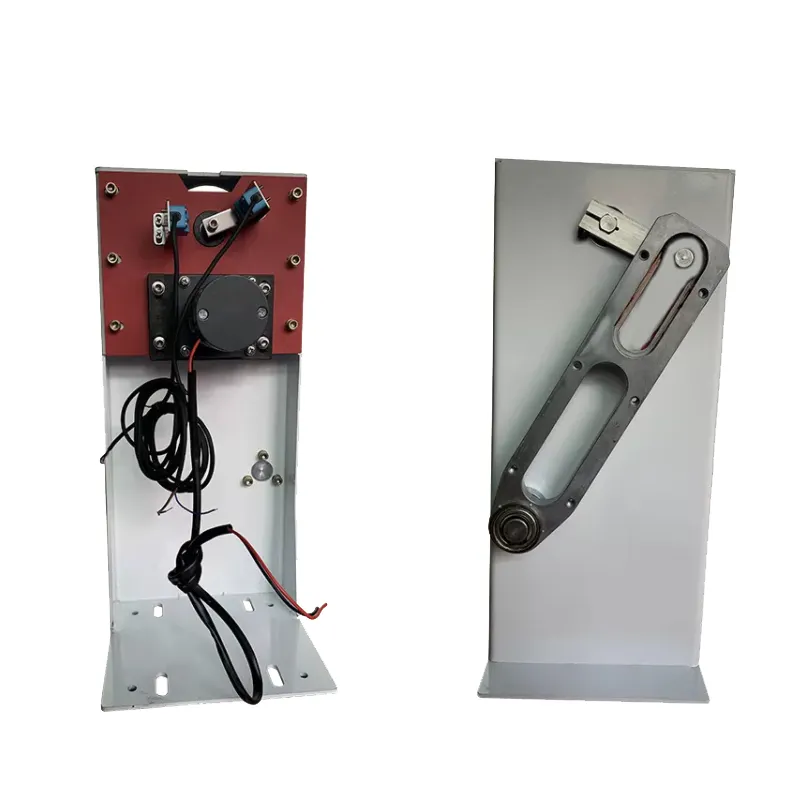

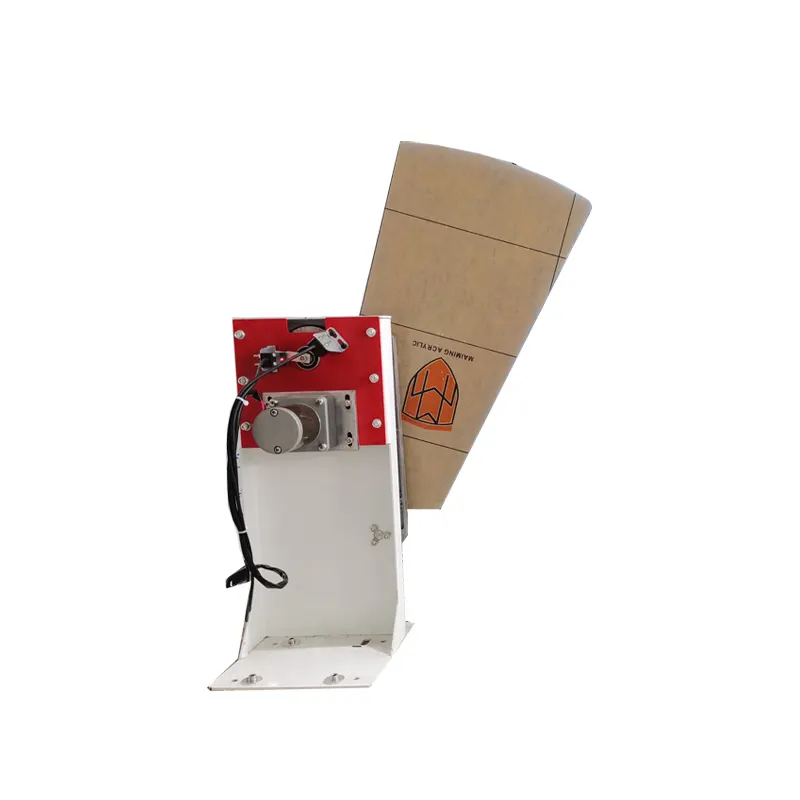

Flap Turnstile Mechanism



Technical Parameter

1

Product name

304 Stainless Steel Retractable Flap Barrier Gate Mechanism

2

Power

AC220V±10V, 50/60HZ;

3

Operating Temperature

-45℃-60℃

4

Relative Humidity

≤95%, No Condensation

5

Passage Width

550mm( 900mm optional)

6

Passing Speed

Normally open-50persons/min; Normally closed-50persons/min

7

Manufacturing Technique

CNC laser cutting

8

Motor

DC Brushless motor, 140W/24V

9

Gate Opening and Closing time

≤ 0.4S

10

Working environment

indoor and outdoor(added the rainshed)

11

Motor Operation Speed

1600R/Min

12

Communication Distance

≤1200M
