BW-KJZ885

Airborne Barrier Gate
(BW-KJZ885)


Product profile

Advertising Barrier Gate is a new type of large air-drop gate, the use of digital control technology, the whole process of monitoring gate operation process, advertising gate operation management can be realized intelligent and simple. Wireless remote control can be used for lifting gate, lowering gate and stopping. The gate movement adopts a specially designed integrated movement. The frame, reducer and transmission mechanism are integrated, which can minimize the body flutter and greatly improve the operation accuracy of the gate, and guarantee the safe and reliable operation of the gate. At the same time, it can adapt to the stretching spring to adjust the length of the rod with high safety, intelligence, modernization, humanization and other characteristics. The surface of the chassis has a beautiful appearance of color matching, electrostatic dust high-temperature paint (180 degrees ~250 degrees) anti-corrosion, anti-fading, anti-falling off, easy maintenance, surface texture is delicate, beautiful and generous, lasting. Road gate can be configured with a variety of anti-smashing system, ground sense, pressure wave, infrared and other anti-smashing functions.

Technical parameters:

 Product model BW-KJZ885
 Power supply AC220V±10%, 50Hz AC110V±10%, 50Hz/60Hz
 Operating temperature -25C to + 70C
 Ambient humidity 5% to 90%
 Rod length ≤6 m
 Motor Full tooth brushless DC motor
 Rated voltage of motor 24V
 Motor power 200W
 Take-off and landing time 2.5~3.5 m 4~5 seconds .6~4.5 m 5~6 seconds adjustable

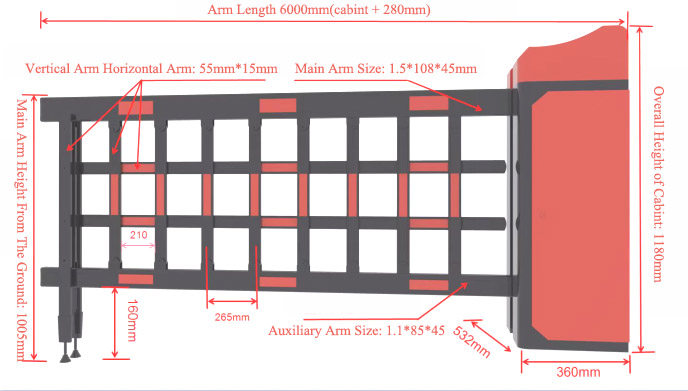

Product size drawing

List of packing acces

Serial

Name

Quantity

1

BW-KJZ885 mainframe

1

2

BW-KJZ885-1 Par

1

3

Master control system (already in case)

1

4

High Power 430 remote control

2

5

Channel gate manual crank handle

 (already installed in the case)

1

6

Keys

2

7

Product identification card (outside case)

1

8

Product identification card (outside

1

9

Anchor platen

2

10

M14*75 stainless steel screws (installed rod handle position)

2

11

Φ14 spring pad (loaded bar handle

position)

2

12

Φ14 flat pad (installed rod handle

 position)

2

13

M12*150 expansion screws

4
